Maxton Headset Bearings

Maxton Headset Bearings (MTB & BMX)are composed of SUJ2 steel to produce so the HRC can reach up to 58-62 degree. It is durable and wearing-proof.  The rubber seals are non-contact Nitrile Butadience Rubber which has good resistance to oil, water resistance, abrasion resistance and elongation force.  The bearings use high quality Japan marine grease and top-notched black oxide coating which make the bearings rolling smoothly, anti-rust happening and longer life than regular bearings at the market.

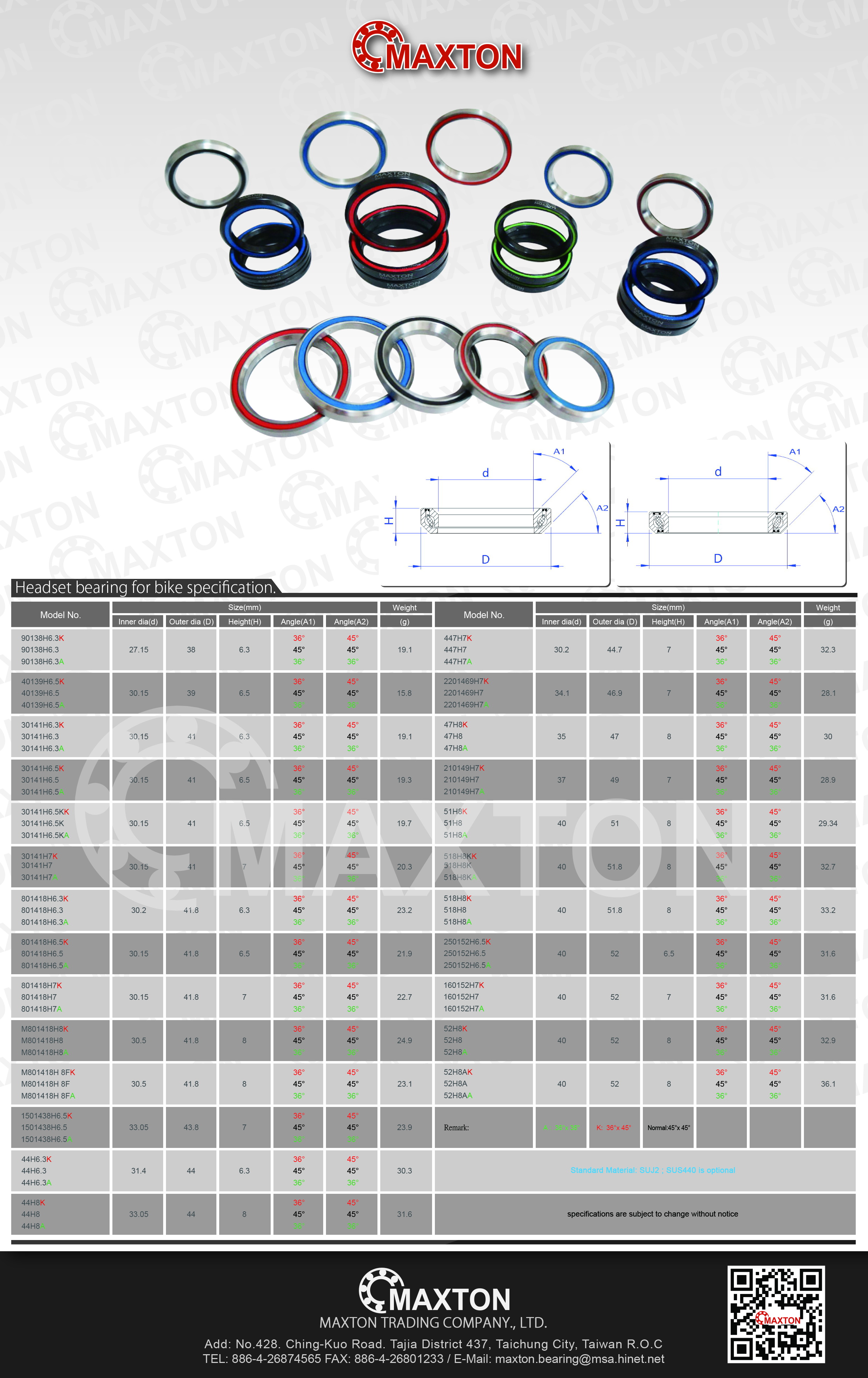

Model Size (mm) Weight
(g)
Inner
dia.(d)
Outer(mm)
dia.(D)
Size(mm)
Width (H)
Angle
(C1)
Angle
(C2
)
ACB38H6.5 27.15 38 6.5 36° 45° 19.2
45° 45°
36° 36°
ACB39H6.5 30.15 39 6.5 36° 45° 15.8
45° 45°
36° 36°
ACB41H6.3 30.15 41 6.3 36° 45° 19.1
45° 45°
36° 36°
ACB41H6.5 30.15 41 6.5 36° 45° 19.3
45° 45°
36° 36°
ACB41H6.5K 30.15 41 6.5 36° 45° 19.7
45° 45°
36° 36°
ACB41H7 30.15 41 7 36° 45° 20.3
45° 45°
36° 36°
ACB418H6.3 30.2 41.8 6.3 36° 45° 23.2
45° 45°
36° 36°
ACB418H6.5 30.15 41.8 6.5 36° 45° 21.9
45° 45°
36° 36°
ACB418H7 30.2 41.8 7 36° 45° 22.7
45° 45°
36° 36°
ACB418H8 30.5 41.8 8 36° 45° 24.9
45° 45°
36° 36°

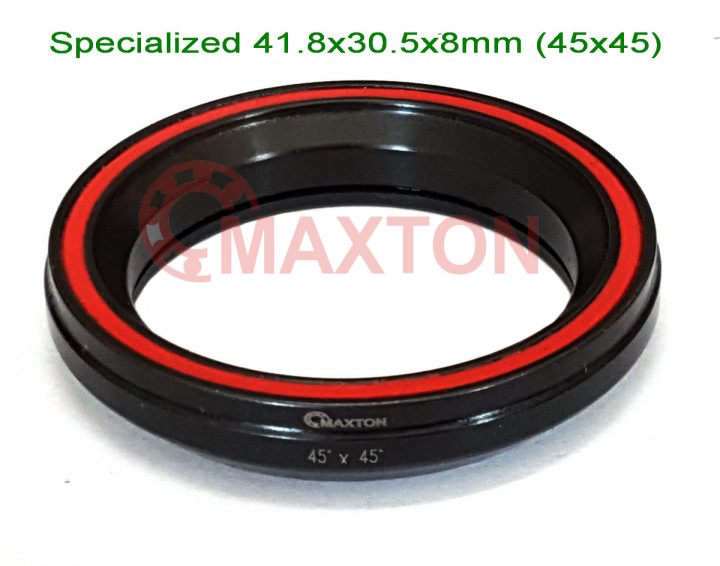

ACB418H 8F 30.5 41.8 8 36° 45° 23.1
45° 45°
36° 36°

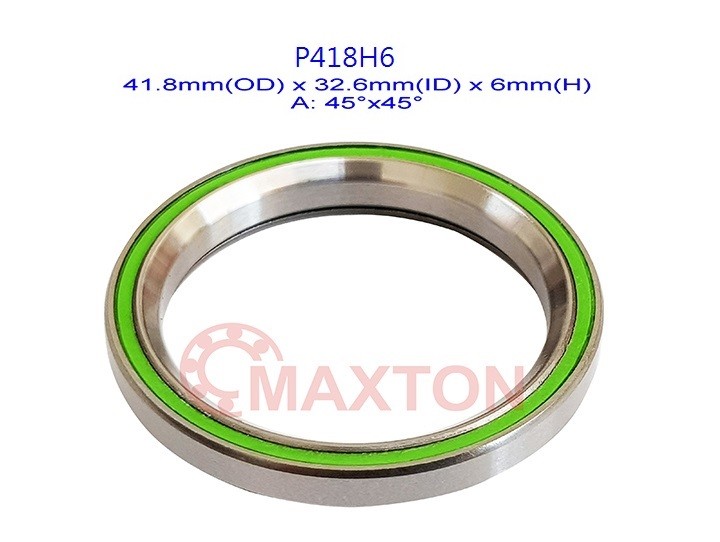

ACB418H6 32.7 41.8 6 36° 45° 23.2
45° 45°
36° 36°
ACB43H7.2 30.2 43 7.2 36° 45° 23.3
45° 45°
36° 36°
ACB438H7 33.05 43.8 7 36° 45° 23.9
45° 45°
36° 36°
ACB44H6.3 31.4 44 6.3 36° 45° 30.3
45° 45°
36° 36°
ACB44H8 30.5 44 8 36° 45° 31.6
45° 45°
36° 36°
ACB447H7 30.2 44.7 7 36° 45° 32.3
45° 45°
36° 36°
ACB448H6.3 31.4 44.8 6.3 36° 45° 32.7
45° 45°
36° 36°
ACB448H7.9 30.2 44.8 7.9 36° 45° 33.5
45° 45°
36° 36°
ACB45H7 33.5 45 7 36° 45° 26.3
45° 45°
36° 36°
ACB46H7 34.1 46 7 36° 45° 25.1
45° 45°
36° 36°

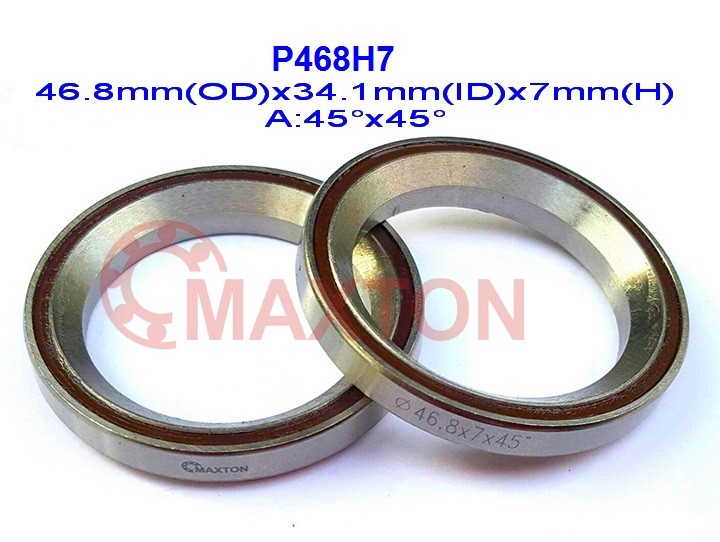

ACB468H7 34.1 46.8 7 36° 45° 27.8
45° 45°
36° 36°
ACB469H7 34.1 46.9 7 36° 45° 28.1
45° 45°
36° 36°
ACB47H8 35 47 8 36° 45° 30
45° 45°
36° 36°
ACB49H7 37 49 7 36° 45° 28.9
45° 45°
36° 36°
ACB51H8 40 51 8 36° 45° 29.34
45° 45°
36° 36°

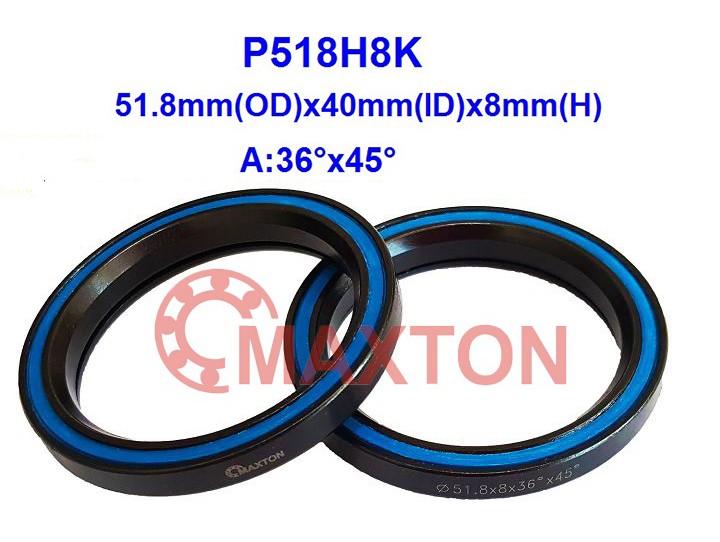

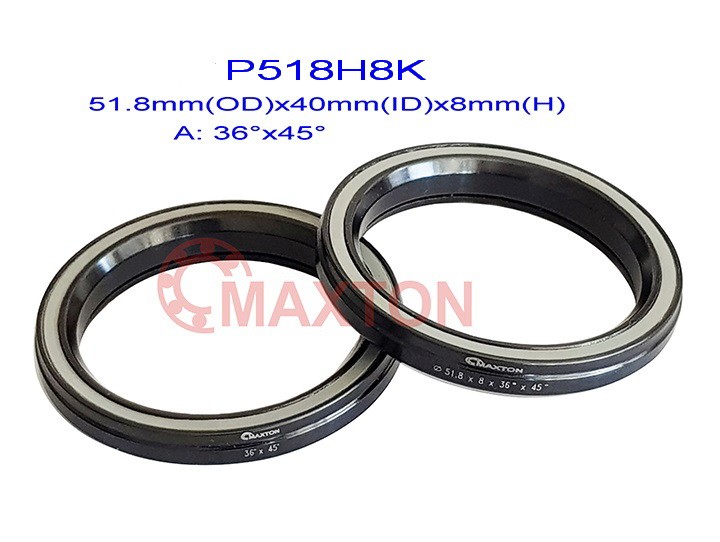

ACB518H8K 40 51.8 8 36° 45° 32.7
45° 45°
36° 36°
ACB518H8 40 51.8 8 36° 45° 33.2
45° 45°
36° 36°
ACB519H8 40 51.9 8 36° 45° 32.7
45° 45°
36° 36°

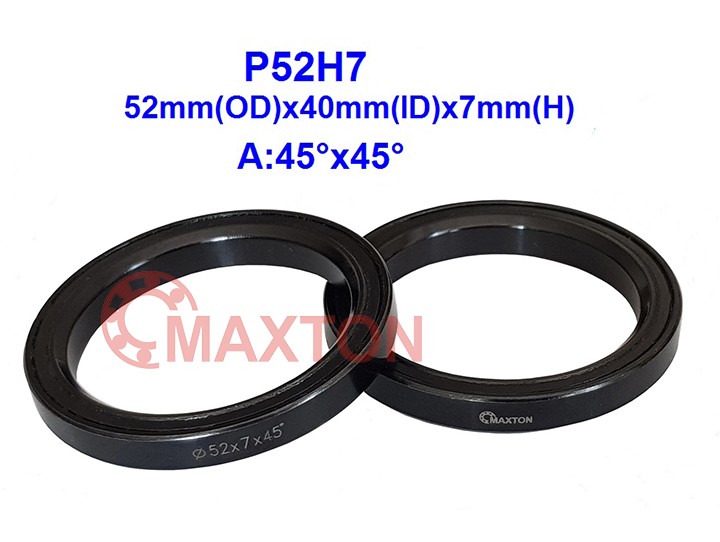

ACB52H7 40 52 7 36° 45° 31.6
45° 45°
36° 36°
ACB52H6.5 40 52 6.5 36° 45° 31.6
45° 45°
36° 36°
ACB52H8 40 52 8 36° 45° 32.9
45° 45°
36° 36°
ACB52H 8A 40 52 8 36° 45° 36.1
45° 45°
36° 36°

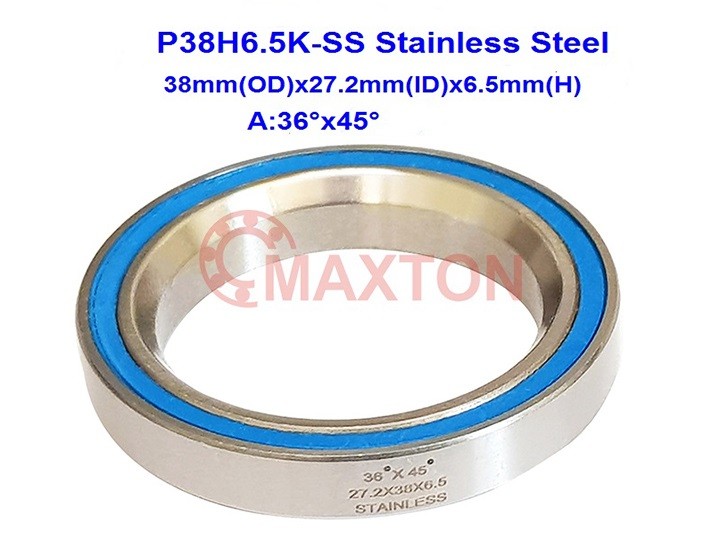

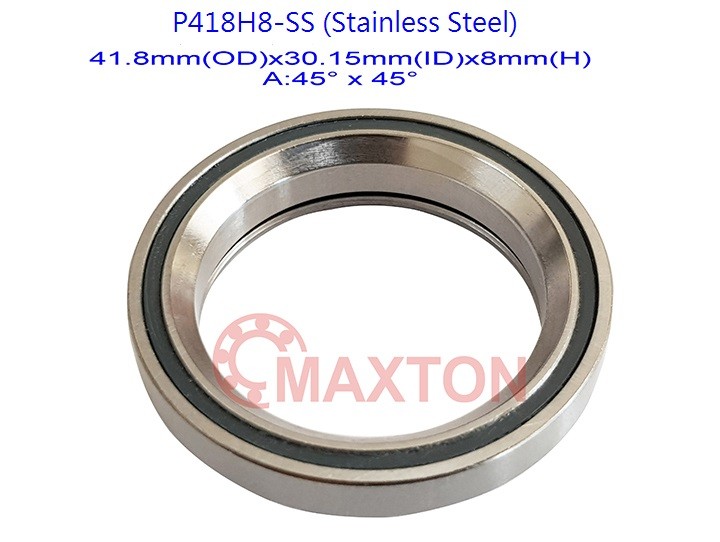

Notice: 1. Standard material for above specifications is SUJ2;

                SUS440 stainless steel is optional and available.

             2. Product specifications on the website are subject to change without notice.
